Acoustic Operable Partition with STC Rating 42-56dB and 6061-T6 Aluminum Alloy Frame for Superior Durability

نام تجاری:	AE
شماره مدل:	AE65
مقدار تولیدی:	10 متر مربع
قیمت:	USD 70-98Per Square Meter
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
توانایی عرضه:	1000 متر مربع در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گوانگدونگ، چین

گواهی:

ISO9001 SGS

محصول:

پارتیشن های آکوستیک قابل اجرا

انطباق:

رستوران، ساختمان اداری

گزینه پایان:

تخته ام دی اف 68 میلی متری

ابعاد:

سفارشی سازی (ارتفاع: تا 4.5M، عرض هر پانل: تا 1.2M)

طراحی:

OEM و ODM

رتبه بندی STC:

42-56dB

جزئیات بسته بندی:

لایه فوم و مقوا سخت با تخته سه لا یا پالت فولادی

برجسته کردن:

STC Rating 42-56dB Acoustic Operable Partition,6061-T6 Aluminum Alloy Frame Movable Partition Wall,Q235 Steel Frame Soundproof Partition Wall

6061-T6 Aluminum Alloy Frame Movable Partition Wall

Q235 Steel Frame Soundproof Partition Wall

توضیحات محصول

Acoustic Operable Partitions - Customizable Movable Partition Walls

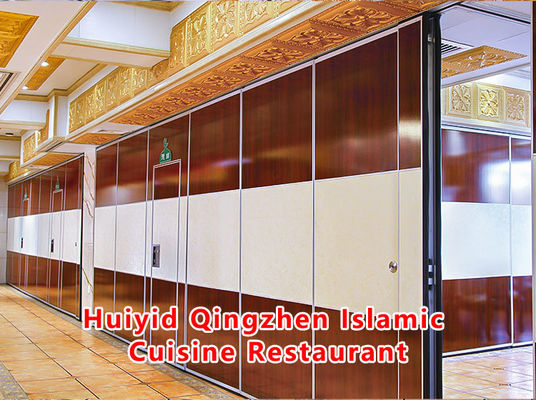

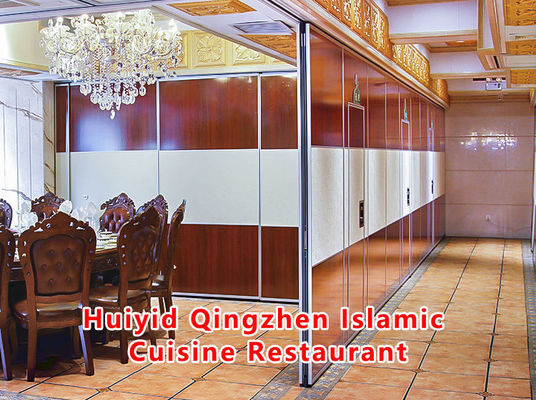

Office Acoustic Operable Partition Wall System with wooden finish

Our cost-effective soundproof movable partition wall systems feature built-in passageway doors, providing both privacy and accessibility. These partitions create quiet, adaptable spaces while maintaining budget efficiency.

Key Features

AE65 series operable partition system with manually operable panels
Simple operation using the operating handle to lock panels in place
Activates top and bottom seals for effective acoustic barriers
No special tools required for installation or operation

Product Strengths

German Partition Technology Global Professional Space Solutions
Highly competitive pricing structure
Stringent quality control measures
Efficient communication channels
State-of-the-art technology products
Extensive experience with large-scale projects
Reliable delivery time management

Roller Options & Features

Dupont POM roller construction
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape design for smooth operation

Panel Options & Features

Available thicknesses: 68mm, 89mm, and 105mm
Wide selection of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for enhanced durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max mm)	Clear Height (min/max mm)	Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
