Acoustic Partition Wall with 56dB Sound Insulation Up to 18M Height and 6061-T6 Profile

Our acoustic partition walls, also known as sliding folding partitions or room dividers, are renowned globally for their exceptional quality, design versatility, acoustic performance, and durability. Manufactured in China, these partitions feature an aluminum frame and offer a range of sizes, performance options, and decorative surfaces.

We produce and export banquet hall acoustic partition walls to numerous countries. Our partitions come in three different wall thicknesses, providing durability and the ability to achieve greater heights. Choose from a variety of acoustic and decorative surface designs to suit your needs.

Our partitions are designed to minimize sound transmission and absorption, reducing acoustic reflections and enhancing soundproofing. They are perfect for temporarily dividing large spaces into smaller areas while maintaining excellent sound insulation.

Our banquet hall acoustic partition walls are part of a movable soundproof room partition system that forms a removable wall. Unlike other materials, our partitions are suspended from an overhead track system, ensuring easy operation and effective soundproofing. Ideal for hotels, banquet halls, and other large venues, these partitions offer both flexibility and performance.

• Dupont POM roller
• 304 stainless steel heavy duty roller with safety device & CNC machining
• Unique and patented wheel surface and shape make the whole movable partition easy to use

• Thickness: 68mm & 89mm & 105mm
• Wide variety of acoustical and decorative finishes available

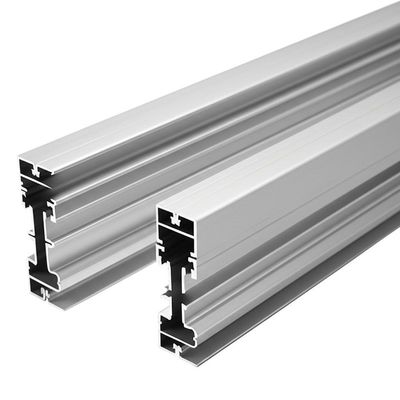

• 6061-T6 profile and inside Q235 steel frame for superior durability
• Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
